How to use OBDSTAR RFID Adapter with OBDSTAR X300DP to do Audi A6L 4th IMMO?
As now our engineer recommend you to choose the OBDSTAR OBD Combination Tool X300 DP Pad with Rfid Adapter (most powerful and cost-effective) to program new key for Audi A6L 4th IMMO.

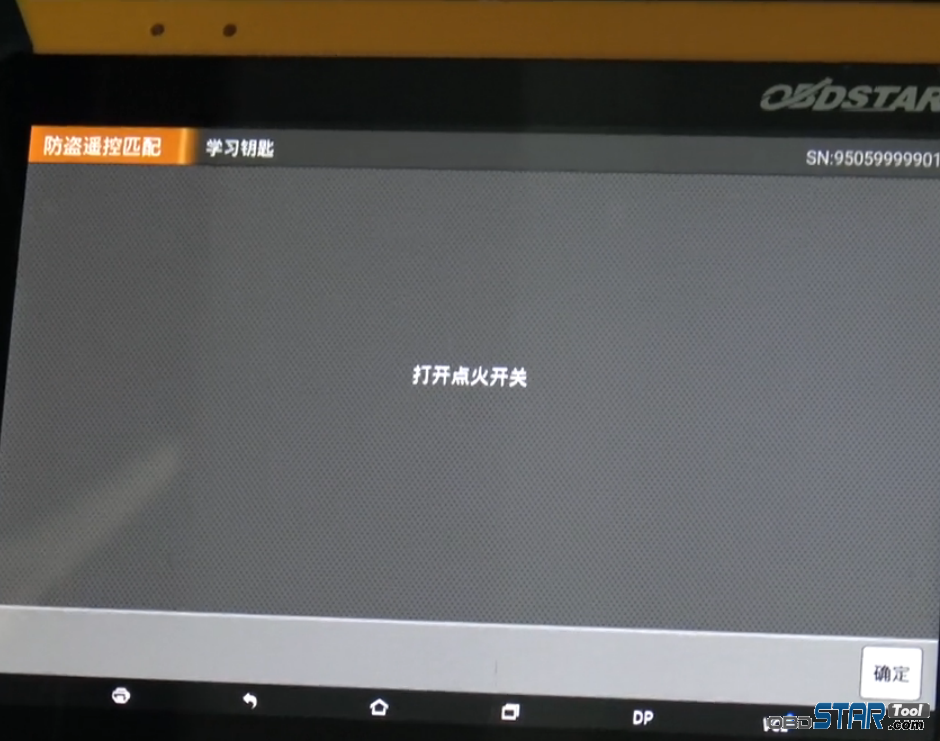

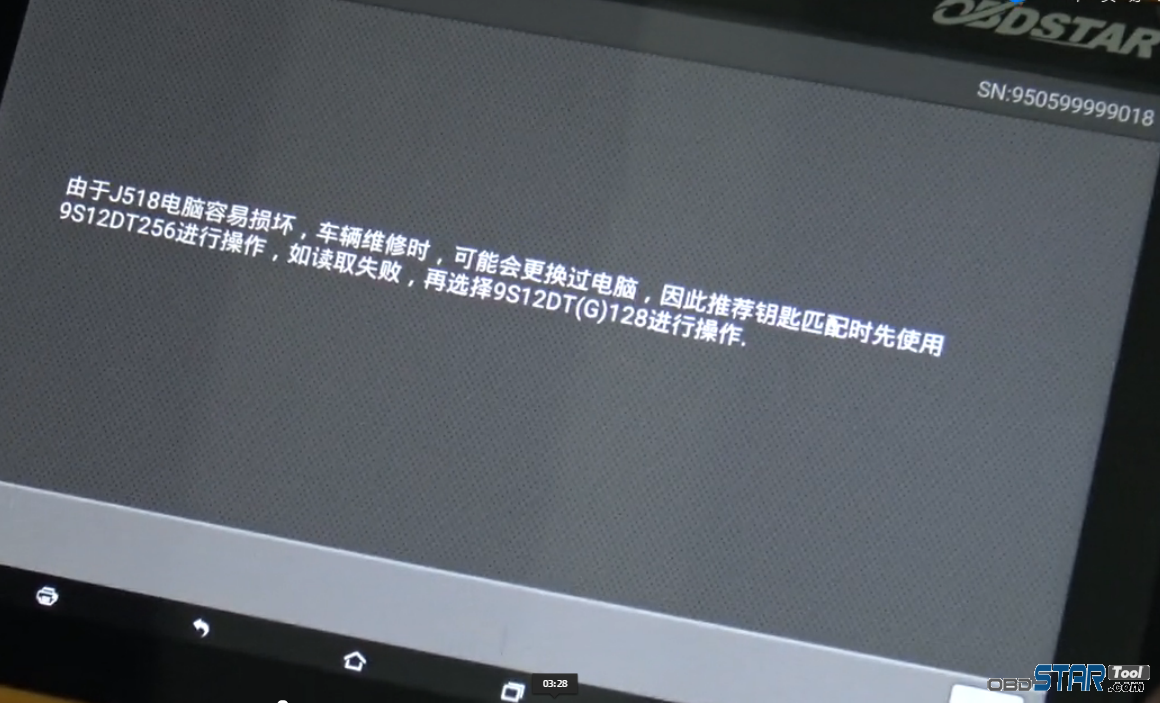

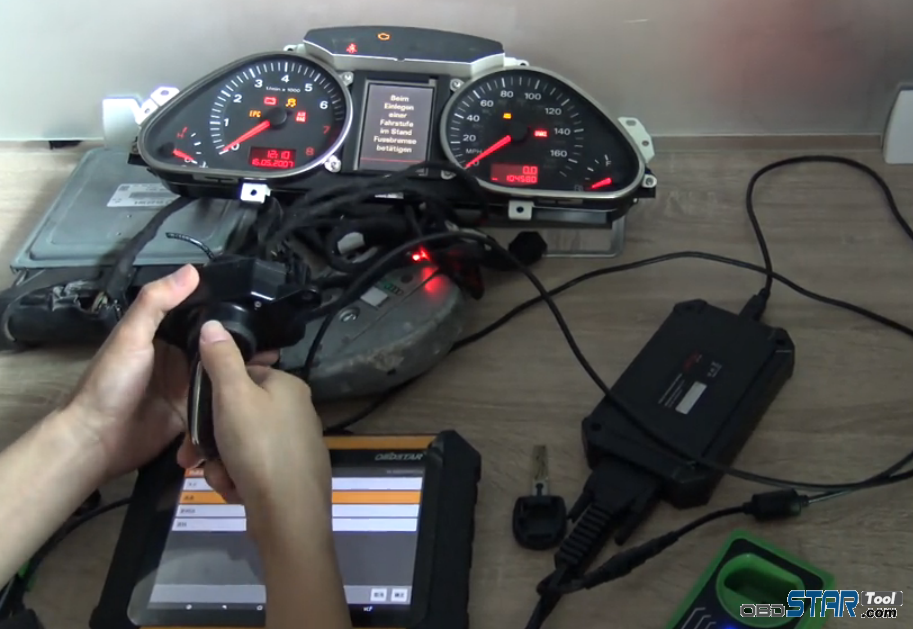

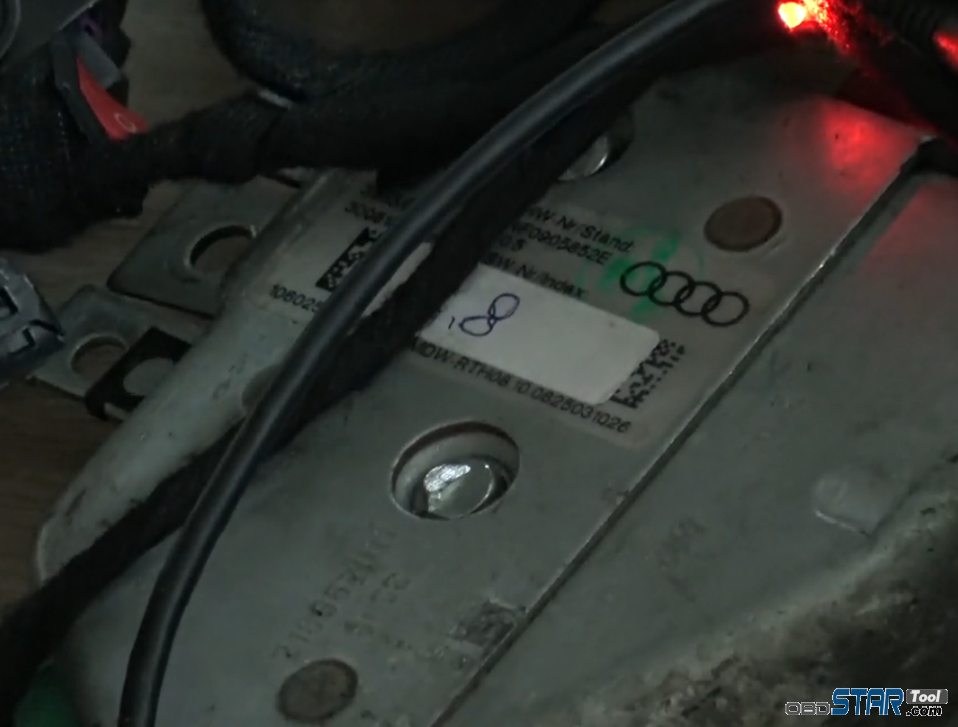

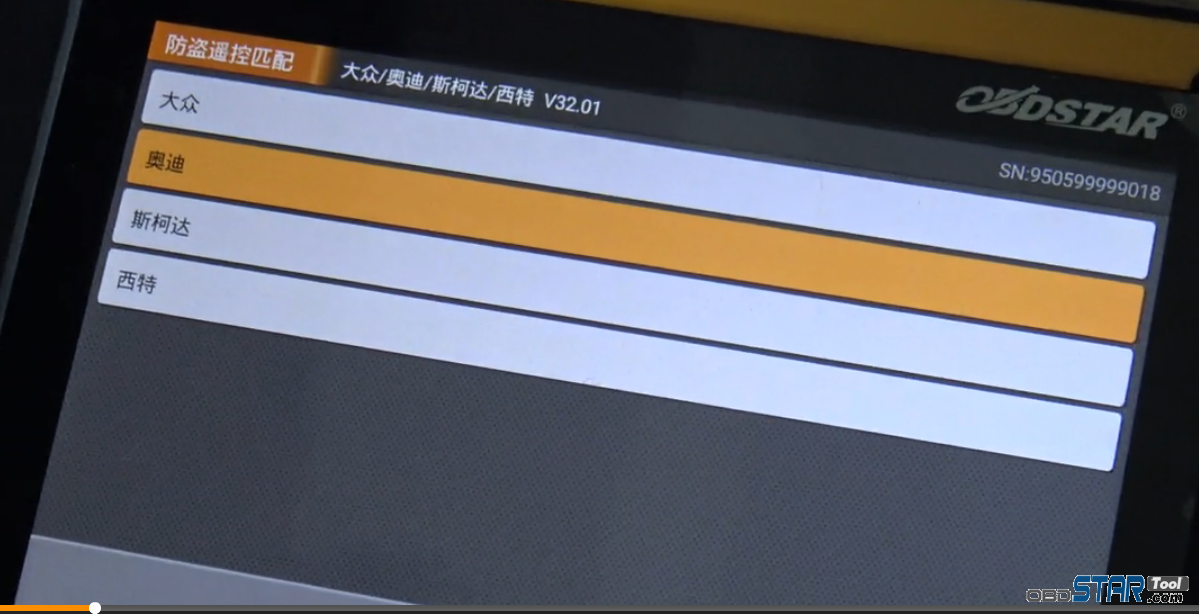

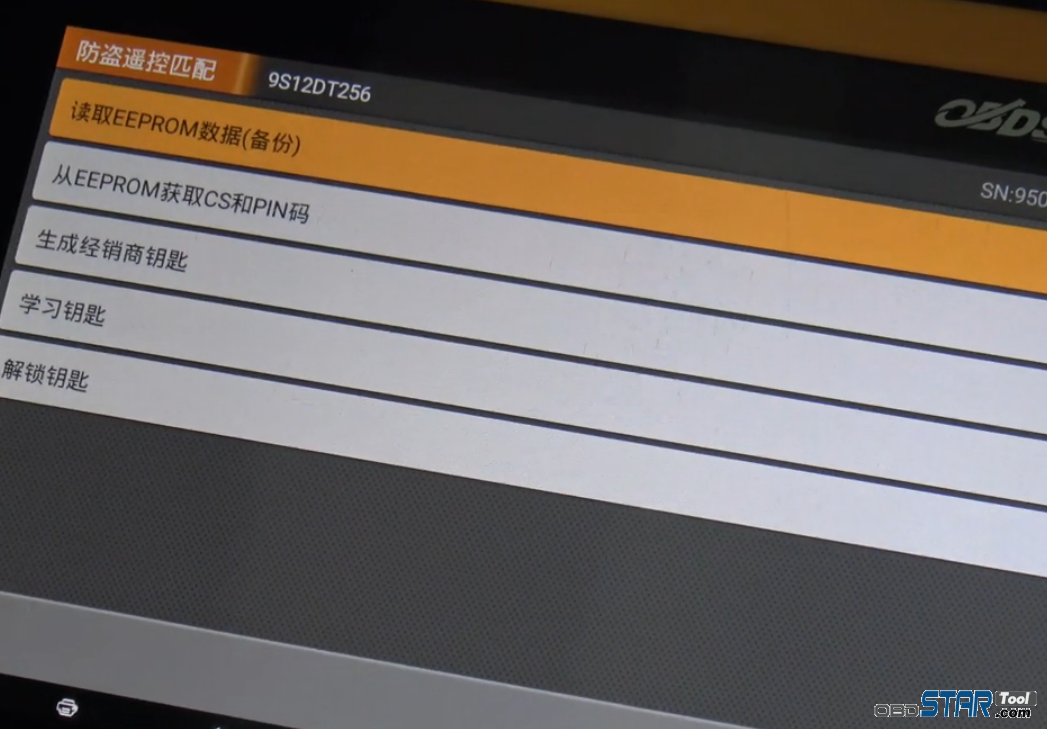

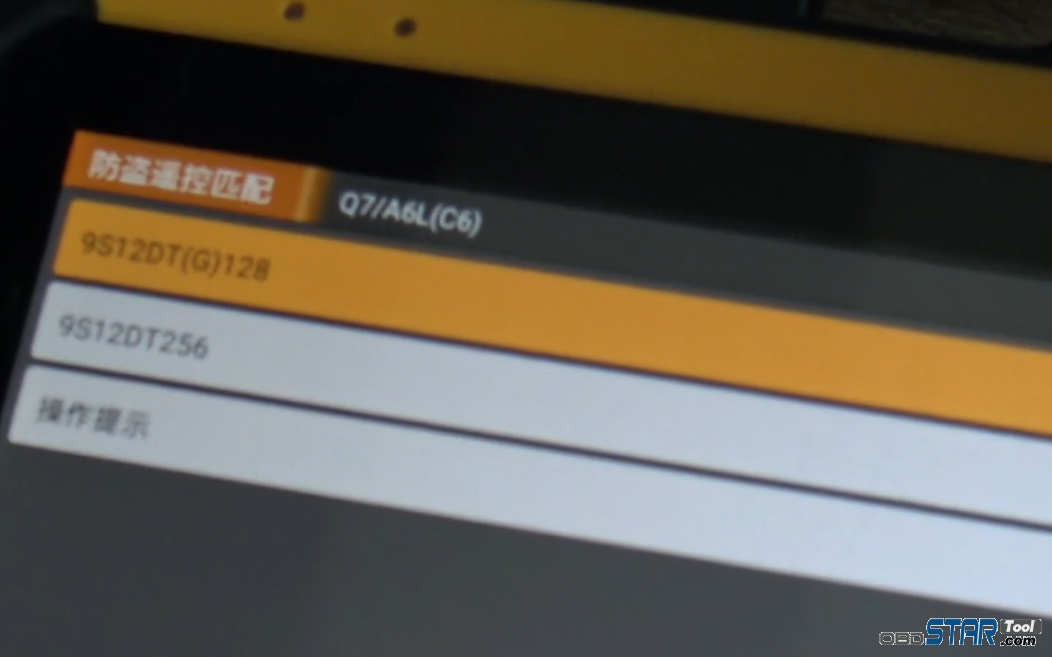

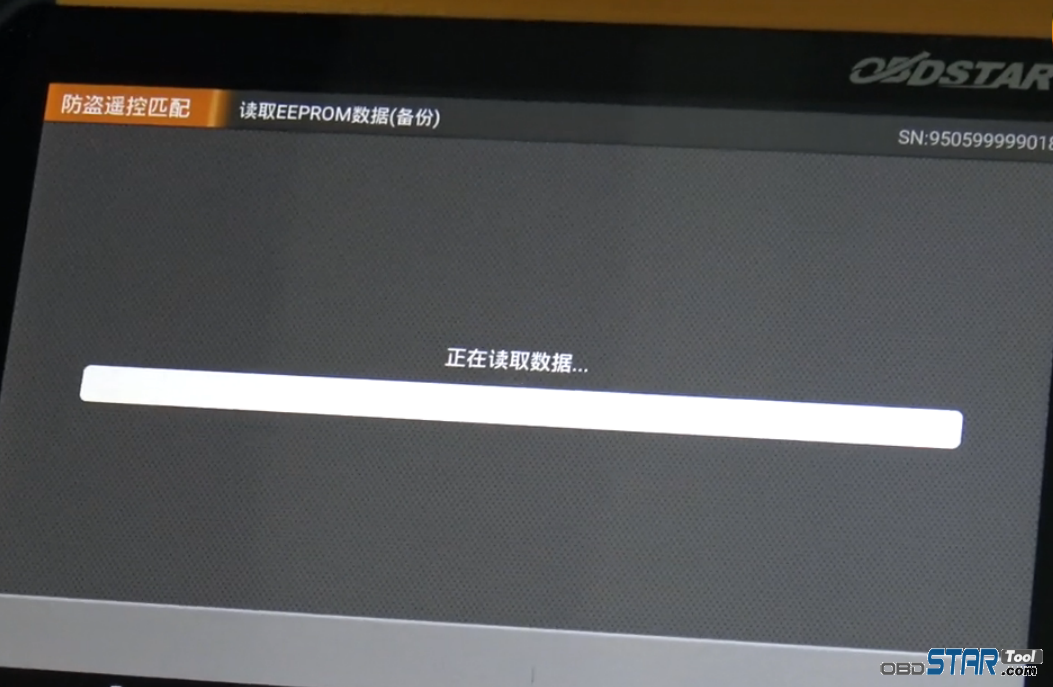

- Turn on ignition with dealer key and read out eeprom data thru 9S12DT256 for Audi A6L.

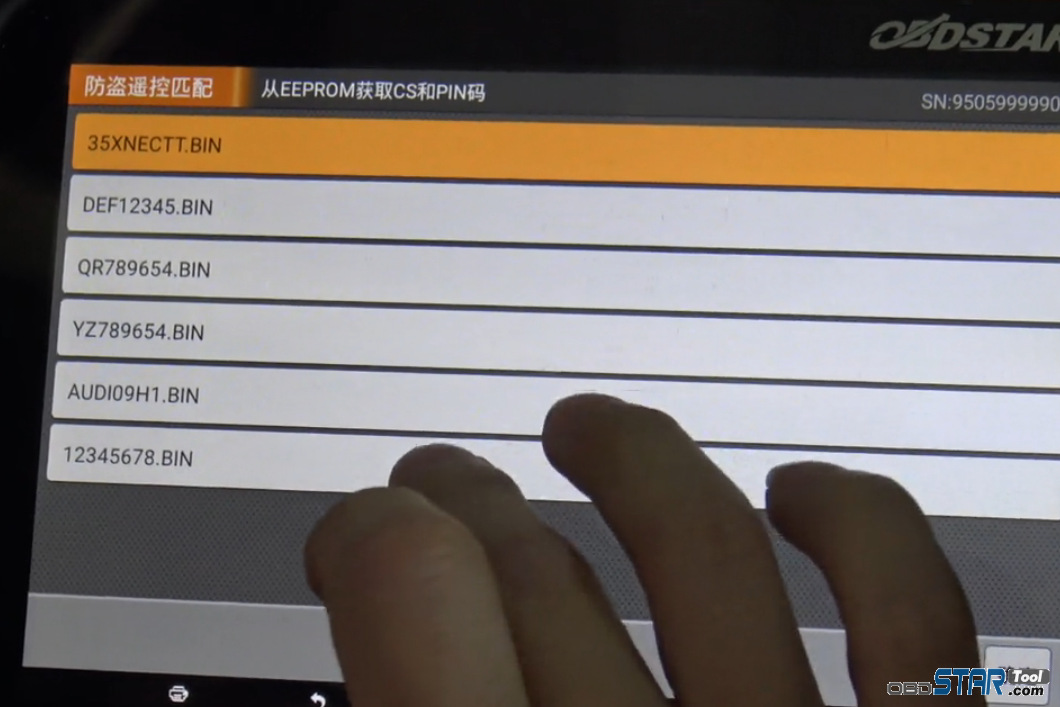

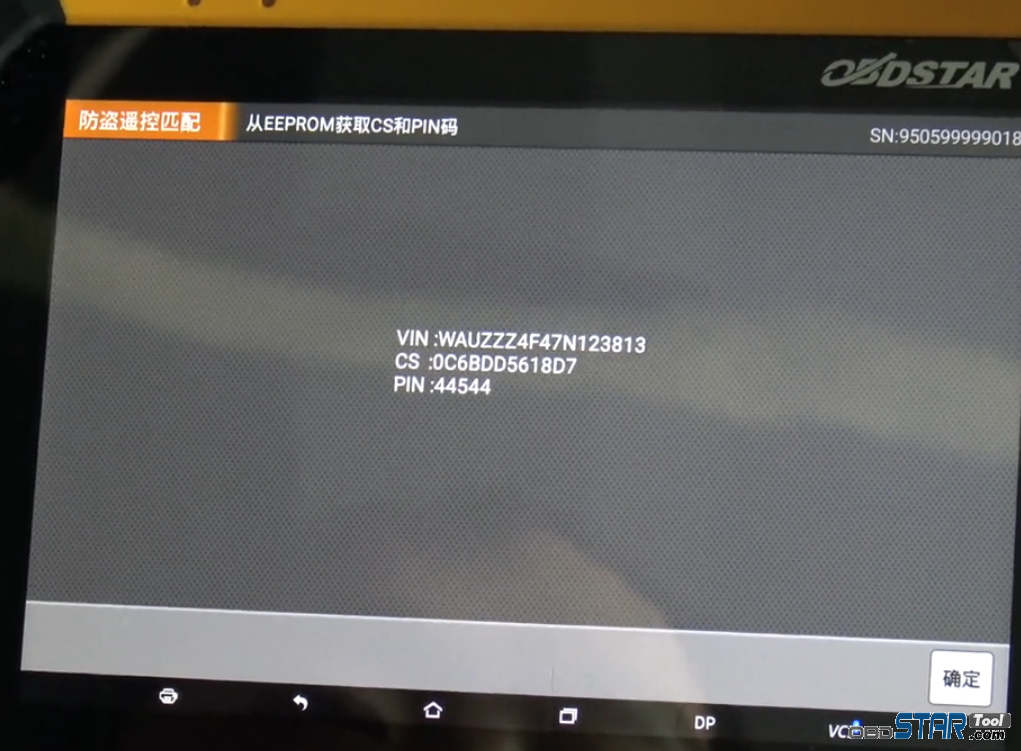

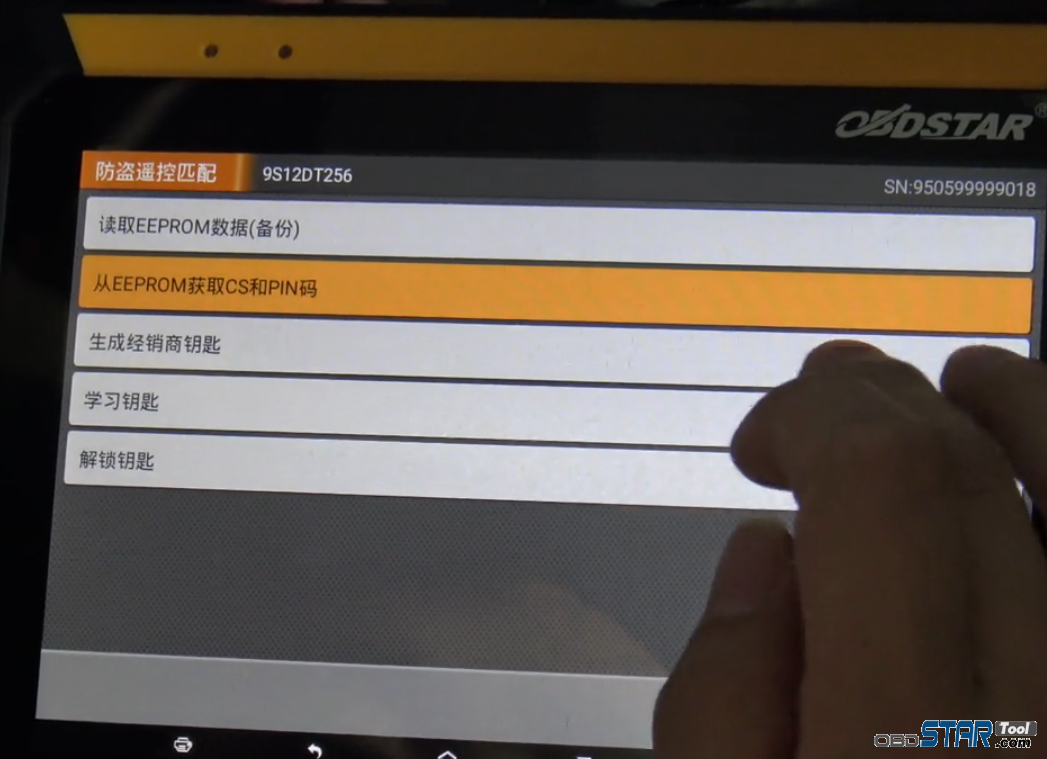

2. Save the EEPROM data, then generate CS code and PIN code from EEPROM data thru 9S12DT256.

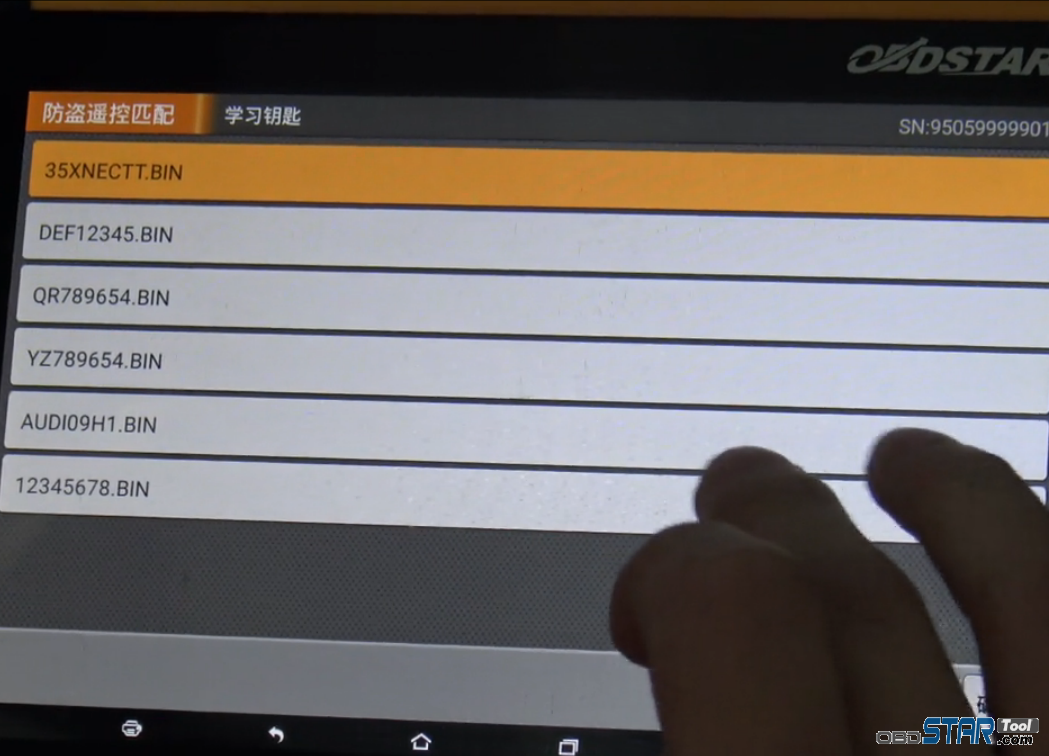

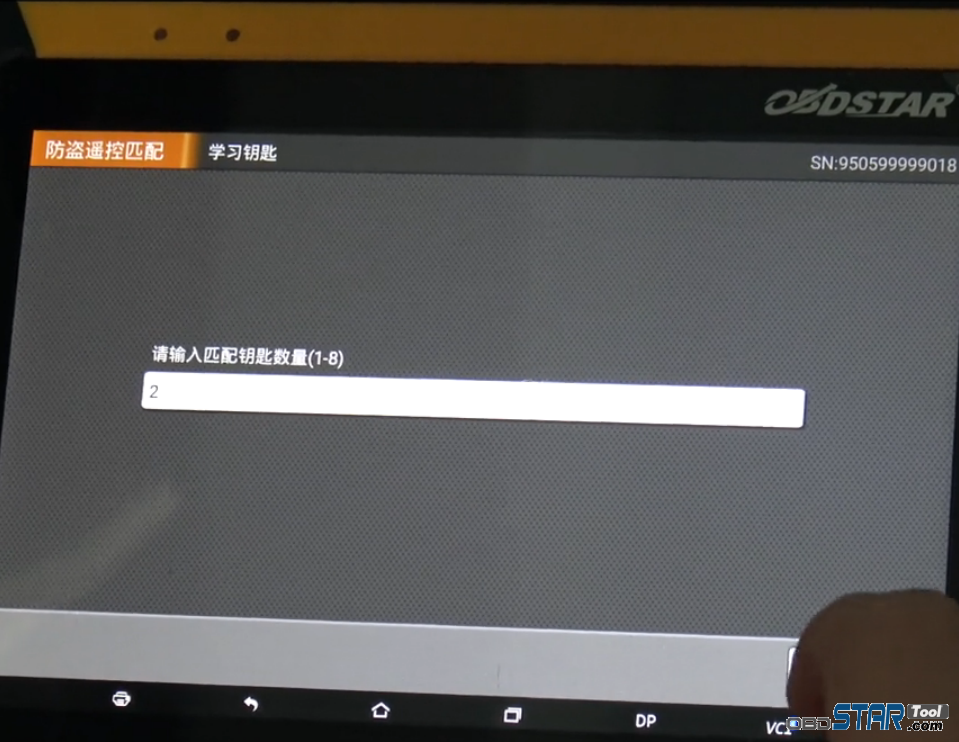

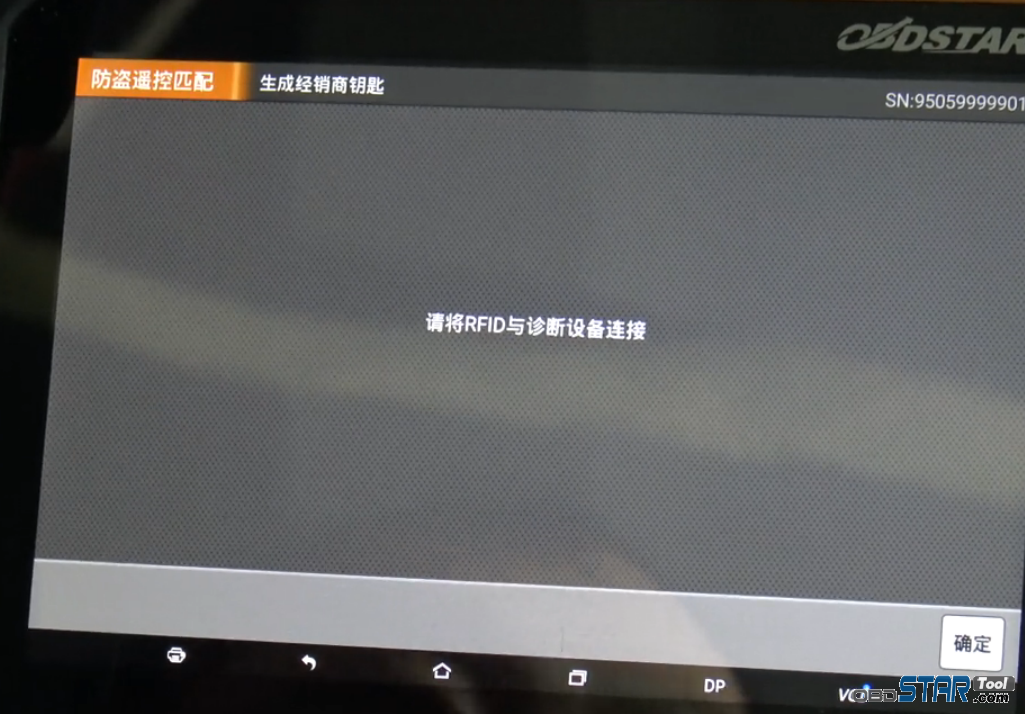

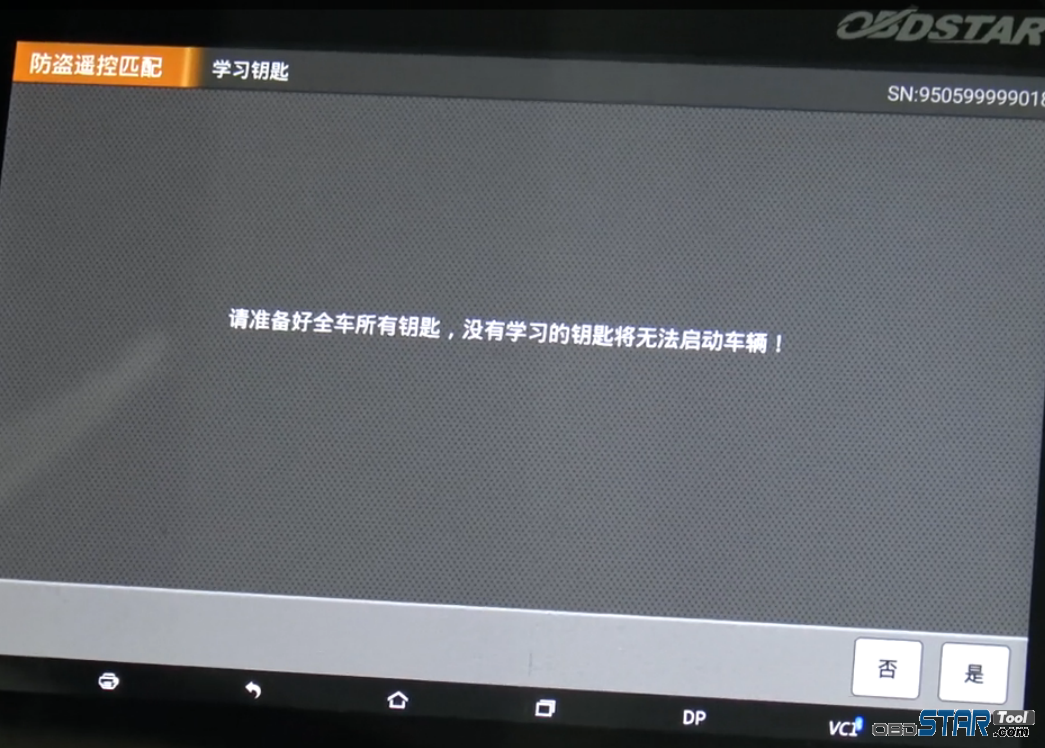

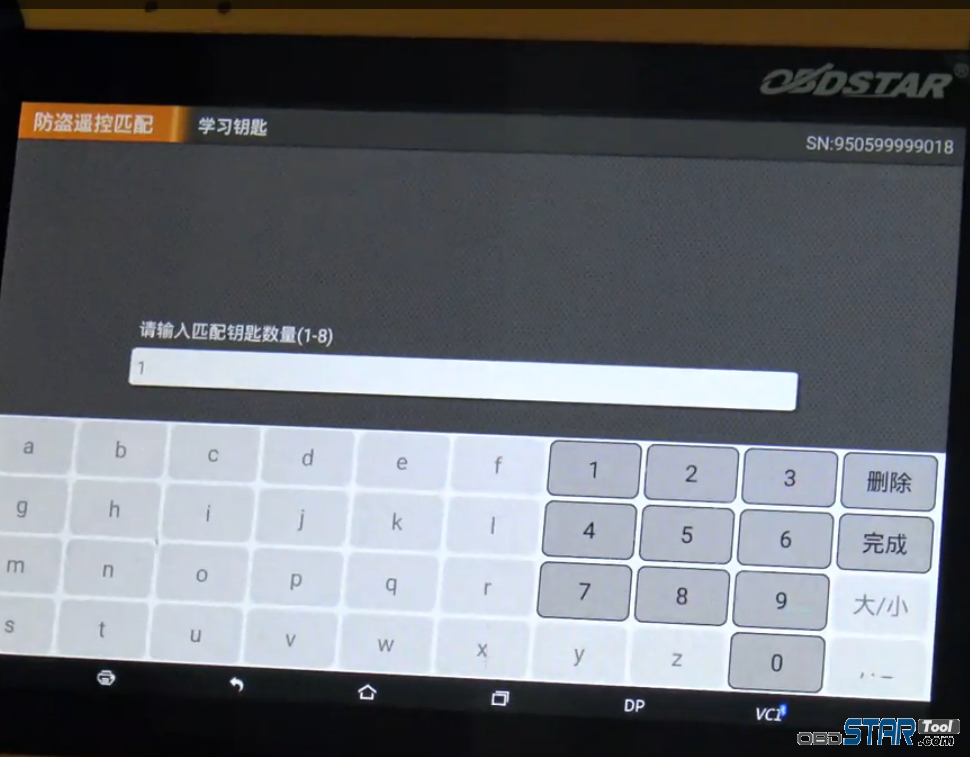

3.Generate Dealer Key from the EEPROM data(Bin file) and do Key Data Learning with OBDSTAR RFID Adapter Chip Reader.
Note:

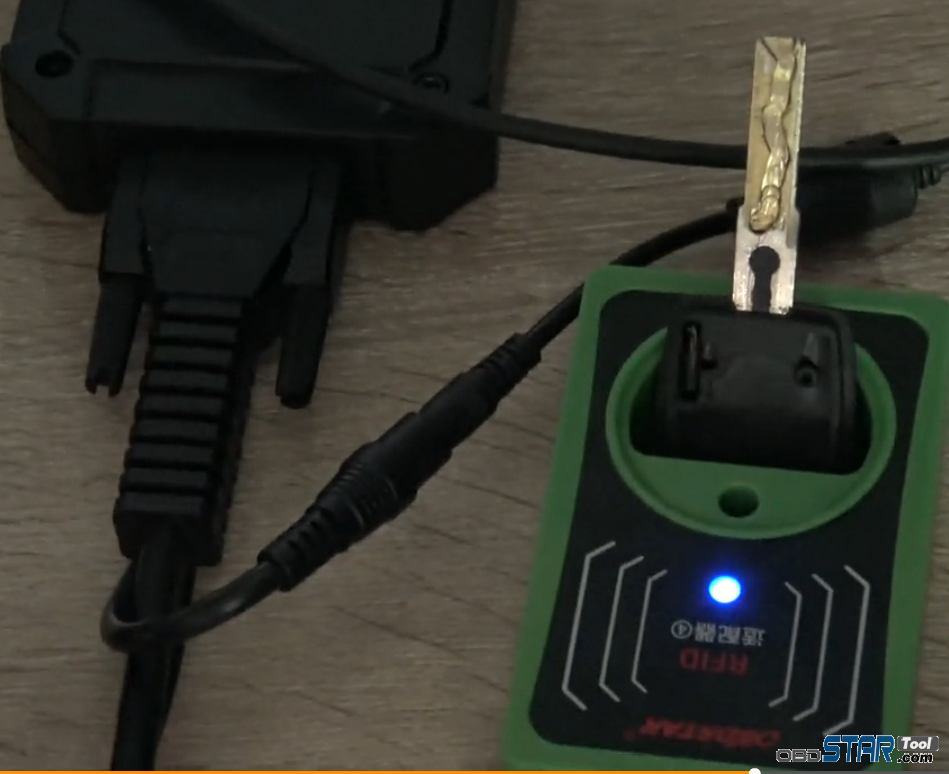

a.Put the new key into OBDSTAR RFID Adapter;

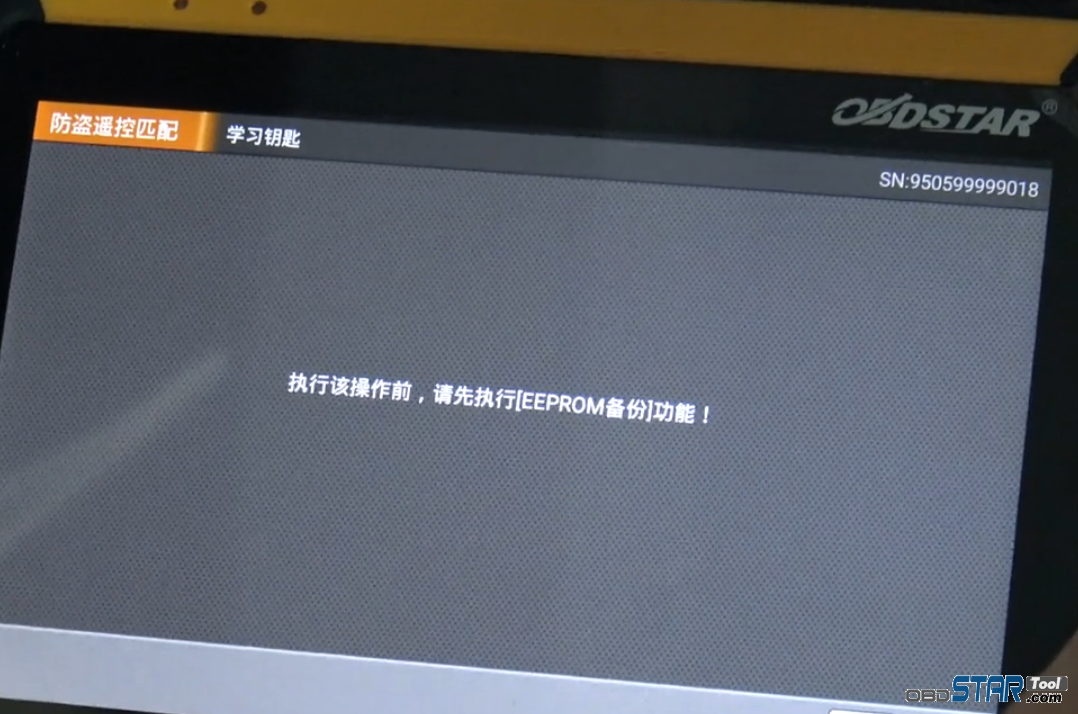

b.Backup EEPROM before key learning;

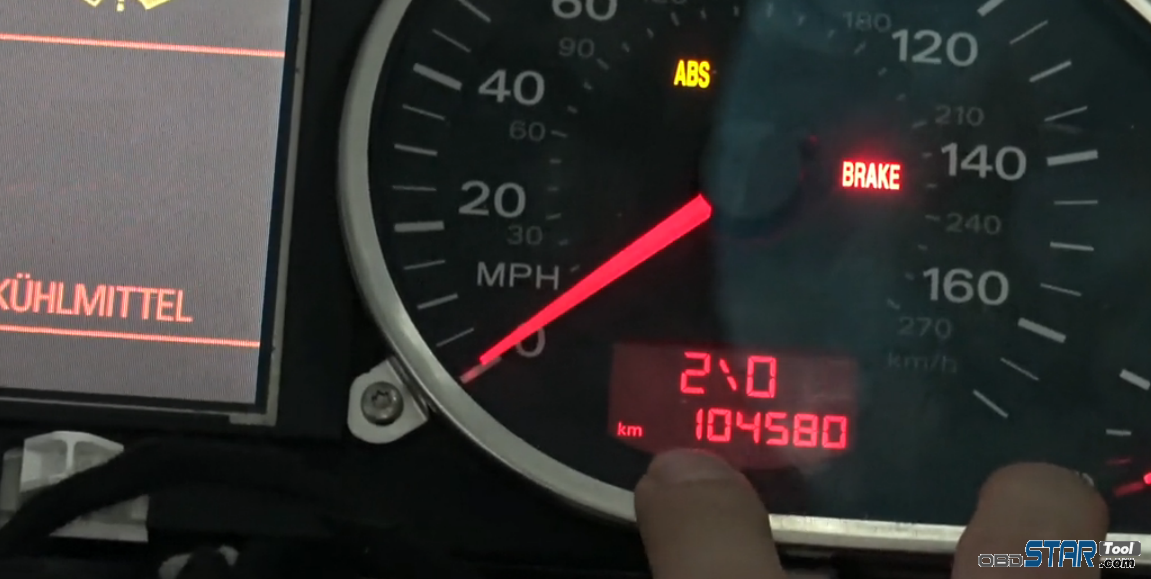

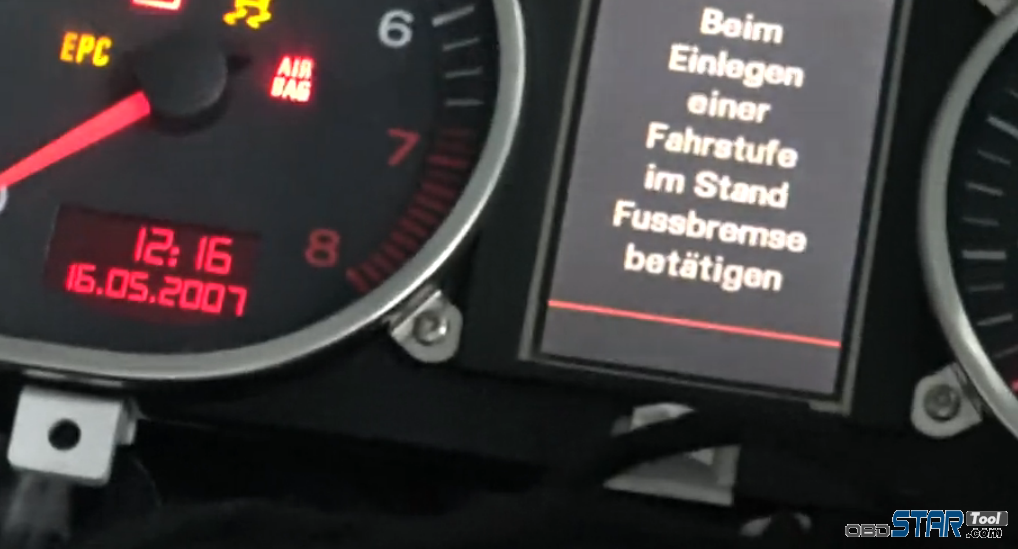

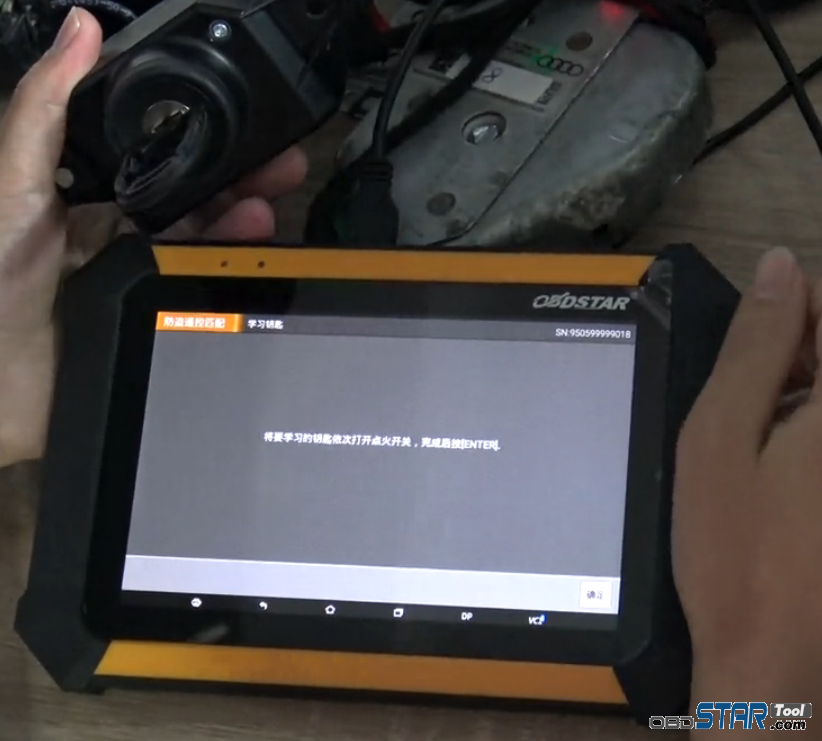

4. After key learning done, test the new key to turn on the ignition.
5. Test OK.
